Tungsten Alloy Counterweight in Industrial Automation & Robotics

Tungsten alloy counterweight is high-density balancing component for industrial automation and robotics, including industrial robots, collaborative robots, automated conveying systems, and CNC equipment, where it supports mass adjustment and center-of-gravity control. CTIA's tungsten alloy counterweight combines concentrated mass capacity, relatively high strength, wear resistance, and low thermal expansion, allowing substantial mass to be integrated into limited spaces within mechanical joints, robotic arms, and other motion mechanisms for inertia matching, load balancing, and motion stability.

1. Features of CTIA's Tungsten Alloy Counterweight in Automation and Robotics
(1) High Density for Compact-Space Counterweighting: With a density of approximately 16.5–18.8 g/cm³, tungsten alloy is approximately 2.1–2.4 times as dense as ordinary steel, allowing greater mass to be positioned within smaller volumes for installation inside robot joints, robotic arms, and other space-constrained locations.
(2) High Strength for High-Speed Motion: With a tensile strength of approximately 700–1050 MPa and hardness of approximately 25–35 HRC, tungsten alloy can withstand inertial loads and vibration generated during robotic arm start-stop cycles, reciprocating motion, and high-speed directional changes.
(3) Good Wear Resistance for Continuous Operation: Tungsten alloy offers good wear resistance for joints, transmission mechanisms, and other continuously moving components, maintaining good dimensional stability in industrial environments involving oil contamination, dust, and other operating conditions.
(4) Flexible Structures for Precision Installation: Tungsten alloy counterweight can be machined into blocks, plates, rods, rings, and irregular components, with holes, grooves, threads, and other structural features available.
(5) Material Options for Different Equipment: W-Ni-Fe offers relatively good strength and overall mechanical properties, while W-Ni-Cu has low magnetic response and is suitable for magnetically sensitive equipment.

2. Applications of CTIA's Tungsten Alloy Counterweight in Industrial Automation & Robotics
(1) Industrial Robots: Used for counterweighting robotic arms, robot joints, and end mechanisms to adjust center of gravity and mass distribution.
(2) Parallel Robots: Used for counterweighting links, linear stages, and moving components to optimize motion inertia.
(3) CNC Machine Tools: Used for dynamic balancing of high-speed spindles, machining heads, and rotating components.
(4) Automated Conveying Equipment: Used for counterweighting conveying mechanisms, cam mechanisms, and linear-motion components to improve operational stability.
(5) Precision Positioning Equipment: Used for counterweighting motion platforms, positioning mechanisms, and precision actuators to optimize center-of-gravity balance.
(6) Vision Inspection Equipment: Used for counterweighting industrial cameras, inspection mechanisms, and precision gimbals to adjust motion balance.
(7) Medical Robots: Used for counterweighting surgical robots, rehabilitation robots, and auxiliary mechanisms to optimize center-of-gravity distribution.
(8) Inspection Robots: Used for counterweighting robotic arms, mobile platforms, and motion mechanisms to improve operational stability.

3. Specifications of CTIA's Tungsten Alloy Counterweight in Automation and Robotics
(1) Material Systems: W-Ni-Fe, W-Ni-Cu
(2) Tungsten Content: 90%–97%
(3) Density: 16.5–18.8 g/cm³
(4) Dimensions: Customizable

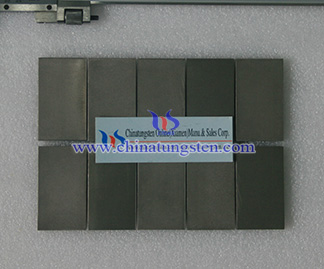

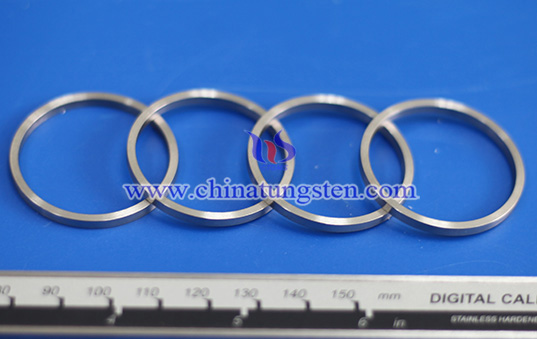

(5) Structural Forms: Counterweight blocks, plates, rods, rings, and irregular components, with holes, grooves, and threads available
(6) Surface Condition: Ground or polished, customizable

CTIA GROUP (CTIA) has nearly 30 years of experience in tungsten alloy manufacturing, with capabilities covering powder metallurgy and precision machining. CTIA provides material selection, structural design, and customization services for tungsten alloy counterweights tailored to the space, mass, environmental, and magnetic-property requirements of industrial robots, automated conveying equipment, and CNC systems, supporting sample production and batch supply for different equipment components.
