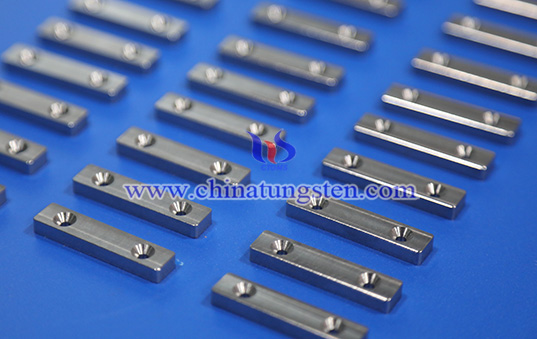

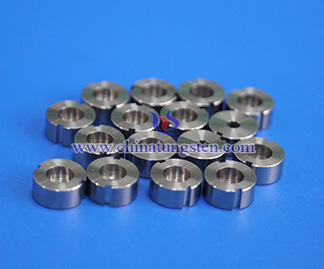

Tungsten Alloy Rocket Control Surface Counterweight
1. What's Tungsten Alloy Rocket Control Surface Counterweight?
Tungsten alloy rocket control surface counterweight is tungsten alloy counterweight installed on rocket control surfaces and related moving structures. It uses the high density of tungsten alloy to provide the required mass within limited space and is used to adjust control surface mass distribution, center-of-gravity position, and moment of inertia.
2. Features of CTIA's Tungsten Alloy Rocket Control Surface Counterweight
(1) High Density, Compact Size: Density typically reaches 17.0–18.5 g/cm³, allowing the required mass to fit into limited space and making it suitable for compact installation inside control surfaces and near shaft systems.
(2) High Strength, Resistance to Mechanical Loads: Tensile strength typically reaches 700–1000 MPa, with hardness of approximately 24–35 HRC, meeting the requirements for vibration, shock, and mechanical loads during rocket flight.
(3) Flexible Structure, Easy Installation and Fixing: Holes, slots, threads, and locating surfaces can be machined according to the installation position, facilitating assembly with control surface structures.
(4) Controllable Dimensional Accuracy, Suitable for Precision Assembly: CTIA controls the dimensions and weight deviation of counterweight components through precision machining to meet the assembly requirements of compact structures.
3. Applications of CTIA's Tungsten Alloy Rocket Control Surface Counterweight
(1) Aerodynamic Control Surfaces: Used for mass balancing of aerodynamic control surfaces and adjustment of mass distribution and center-of-gravity position.
(2) Grid Fins: Used for mass distribution in grid fin structures where internal installation space is limited.
(3) Tail Control Surfaces: Used for mass compensation and center-of-gravity adjustment of movable tail control surfaces, supporting mass distribution adjustment during control surface movement.
(4) Control Surface Drive and Support Structures: Used for mass balancing of control surface drive, connection, and support components to meet counterweight requirements for related moving structures.
4. Specifications of CTIA's Tungsten Alloy Rocket Control Surface Counterweight
(1) Material: W-Ni-Fe, W-Ni-Cu
(2) Tungsten Content: 90%–97%
(3) Density: 16.5–18.8 g/cm³
(4) Dimensions: Customizable
(5) Surface Treatment: Nickel plating, epoxy resin coating
CTIA GROUP (CTIA) has nearly 30 years of experience in tungsten alloy manufacturing, with expertise in material preparation, product design, powder metallurgy, and precision machining. CTIA provides customized counterweight solutions for different installation spaces, mass distributions, and connection methods, with precise control of product weight, dimensions, and geometric accuracy, while supporting sample trials and batch production.
