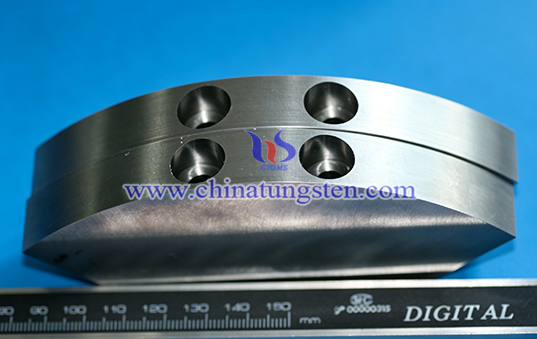

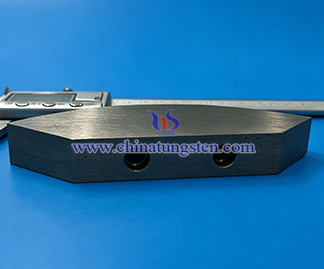

Tungsten Alloy Racing Counterweight
1. What's Tungsten Alloy Racing Counterweight?
Tungsten alloy racing counterweight is high-density balance weight used to adjust race car mass distribution, axle loads, and center-of-gravity position. CTIA's tungsten alloy racing counterweight adds mass at designated vehicle locations to redistribute overall vehicle mass, optimize front-to-rear weight distribution and left-to-right balance, and adjust dynamic response, meeting racing requirements for compact counterweighting and precise handling setup.
2. Features of CTIA's Tungsten Alloy Racing Counterweight
(1) High Density for Compact Counterweighting: Tungsten alloy has a density of approximately 16.5–18.8 g/cm³, requiring less volume for the same counterweight mass and allowing greater mass to be positioned within limited installation space in race cars.
(2) Concentrated Mass for Flexible Placement: High material density allows the required counterweight mass to be concentrated within a small area, providing flexibility in positioning the counterweight according to race car setup requirements.
(3) Stable Properties for High-Speed Operation: W-Ni-Fe and W-Ni-Cu tungsten alloys offer good strength, hardness, and wear resistance, with a coefficient of thermal expansion of approximately 4–6 × 10⁻⁶/°C, allowing the counterweight to withstand vibration, impact, and temperature variations during high-speed operation.
3. Applications of CTIA's Tungsten Alloy Racing Counterweight
(1) Chassis: Adjusts front-to-rear axle loads and left-to-right loads to optimize overall vehicle mass distribution.
(2) Wheels and Hubs: Provides mass balancing for rotating components to reduce vibration caused by mass imbalance.
(3) Engines: Supports mass adjustment and dynamic balancing of crankshafts, flywheels, and other rotating components.
(4) Body Structures: Provides localized counterweighting according to overall vehicle mass distribution requirements to help control center-of-gravity position.
(5) Racing Setup and Testing: Counterweight mass and mounting position can be adjusted to configure and evaluate front-to-rear weight distribution, axle loads, and center-of-gravity position.
4. Specifications of CTIA's Tungsten Alloy Racing Counterweight
(1) Materials: W-Ni-Fe, W-Ni-Cu
(2) Tungsten Content: 90%–97%
(3) Density: 16.5–18.8 g/cm³
(4) Shapes: Tungsten alloy blocks, rods, plates, rings, and customized structures
(5) Dimensions: Customizable
Backed by nearly 30 years of expertise in tungsten alloy manufacturing, CTIA GROUP (CTIA) has mature capabilities in powder metallurgy and precision machining. CTIA provides customized tungsten alloy racing counterweights tailored to requirements for mass, structural design, and assembly conditions, supporting complex geometries, dimensional accuracy, and assembly fit for high-performance racing applications where space utilization and precise mass configuration are critical.
