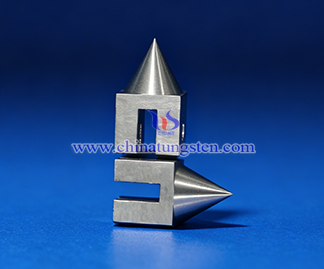

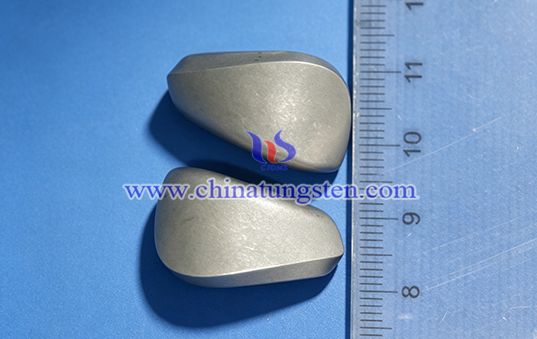

Tungsten Alloy Sports Equipment Counterweight

1. What's Tungsten Alloy Sports Equipment Counterweight?
Tungsten alloy sports equipment counterweight is mass-adjustment component mainly used in golf club heads, darts, billiards cues, racing equipment, bows and arrows, rackets, and fitness training equipment. CTIA's tungsten alloy counterweight adjusts the equipment's center of gravity, balance, and inertial characteristics by changing the counterweight mass and installation position. Its high density allows relatively large masses to be concentrated within limited structural space, making it suitable for sports equipment with strict requirements for volume, weight, and assembly accuracy.

2. Why Does Sports Equipment Need Tungsten Alloy Counterweights?
Sports equipment has specific requirements for counterweight material density, strength, structural adaptability, and machining accuracy. CTIA's tungsten alloy counterweights offer the following characteristics to meet different equipment counterweighting requirements:
(1) Reduced Counterweight Volume: Density of 16.5–18.8 g/cm³ requires less volume for the same mass, making it suitable for space-limited counterweight locations inside golf club heads, darts, cues, and other equipment.
(2) Resistance to Sports Impact: Good strength and hardness enable the material to withstand mechanical loads caused by ball striking, collision, vibration, and frequent movement, making it suitable for sports equipment subject to repeated use.
(3) Flexible Center-of-Gravity Adjustment: Counterweight mass, dimensions, and installation position can be adjusted to control the equipment's center of gravity, balance point, and mass distribution for different counterweighting designs.
(4) Adaptability to Complex Structures: Available forms include counterweight blocks, rods, plates, rings, and irregular parts, with drilling, slotting, tapping, and other machining options to suit different internal structures and installation methods.
(5) Fine Counterweight Adjustment: Turning, milling, grinding, and other machining processes control dimensions, geometrical tolerances, and mass deviation to meet the precision requirements of sports equipment counterweighting.

3. Applications of CTIA's Tungsten Alloy Sports Equipment Counterweight
(1) Golf Equipment: Used in the head, sole, and perimeter of drivers, fairway woods, irons, and putters to adjust the clubhead's center of gravity and inertial characteristics through counterweight placement.
(2) Darts: Used in the front, middle, and rear counterweight sections of dart barrels to control barrel dimensions and adjust the dart's center of gravity.
(3) Billiards Cues: Used in cue butts, inside cue bodies, and counterweight screws to adjust the cue's balance point and overall weight through changes in counterweight mass and position.
(4) Bows and Arrows: Used in stabilizers, sights, and related counterweight locations of recurve and compound bows to adjust equipment balance and vibration response during movement.
(5) Rackets: Used in tennis rackets, badminton rackets, and other racket structures to change overall weight, balance point, and swing characteristics through localized mass adjustment.
(6) Fitness Training Equipment: Used in counterweight assemblies, adjustment components, and small balancing structures of training equipment to adjust local mass and overall balance.

4. Specifications of CTIA's Tungsten Alloy Sports Equipment Counterweight
(1) Material: W-Ni-Fe, W-Ni-Cu
(2) Tungsten Content: 90%–97%
(3) Density: 16.5–18.8 g/cm³
(4) Structural Forms: Tungsten alloy blocks, plates, rods, rings, screws, and irregular parts
(5) Dimensions: Customizable
(6) Surface Treatment: Polishing, nickel plating, and other treatments

CTIA GROUP (CTIA) has nearly 30 years of experience in tungsten alloy manufacturing, with mature capabilities in powder metallurgy and precision machining. CTIA provides customized services covering material selection, structural design, and precision machining based on the installation space, mass distribution, and structural requirements of sports equipment, with strict control of density, dimensions, and geometrical tolerances to meet different counterweighting and assembly requirements.
