Tungsten Alloy Oil Drilling Counterweight
1. What's Tungsten Alloy Oil Drilling Counterweight?
Tungsten alloy oil drilling counterweight is mass-adding component used in oil drilling equipment and downhole tools to increase mass within limited space and adjust weight distribution to meet deployment, operational, and balance requirements. CTIA's tungsten alloy oil drilling counterweight provides the required mass in a compact size, making it suitable for drilling tools with limited installation space, including downhole tool assemblies, measurement-while-drilling systems, directional drilling tools, and well logging instruments.
2. Features of CTIA's Tungsten Alloy Oil Drilling Counterweight
(1) High Density, Effective Weight Addition: Delivering a density of approximately 16.5–18.8 g/cm³, tungsten alloy provides substantially more mass than steel in the same volume, making it suitable for drilling tools that require significant additional weight within limited installation space.
(2) High strength and Durability: Withstanding mechanical loads during operation, tungsten alloy provides high strength and toughness for different counterweight applications. Material selection depends on the tool's loading conditions and operating environment.
(3) Controllable Mass: Allowing adjustments to dimensions and overall mass, tungsten alloy counterweights can meet the weight requirements of different drilling tools.
(4) Flexible Installation Options: Supporting various shapes and connection features, counterweights can be designed with center holes, threaded holes, or locating shoulders to suit assembly requirements and equipment connections.
(5) Dimensional Stability: Limiting dimensional changes as temperatures vary, tungsten alloy's relatively low coefficient of thermal expansion helps maintain fit precision between the counterweight and adjacent components.
(6) Material Selection: Offering a choice between W-Ni-Fe and W-Ni-Cu alloys, material selection can account for magnetic requirements. W-Ni-Fe exhibits magnetic properties, while W-Ni-Cu is generally non-magnetic or has a low magnetic response.
3. Applications of CTIA's Tungsten Alloy Oil Drilling Counterweight
(1) Downhole Tool Counterweights: Installed in downhole tool assemblies that require additional mass, tungsten alloy counterweights provide the required weight within restricted outer diameters. These counterweights are suitable for structures with specific tool-length and space constraints.
(2) Measurement-While-Drilling and Directional Drilling Tools: Used in tools requiring internal counterweights to control mass distribution or meet specific structural design requirements, tungsten alloy counterweights can be selected according to installation space, connection methods, and magnetic requirements.
(3) Well Logging Tool Counterweight Assemblies: Incorporated into wireline logging and similar operations, counterweights help the tool string overcome fluid buoyancy and wellbore friction, facilitating tool deployment into the well. In deviated or horizontal wells, the required counterweight mass and installation position also depend on the well trajectory and tool string configuration.
4. Specifications of CTIA's Tungsten Alloy Oil Drilling Counterweight
(1) Materials: W-Ni-Fe and W-Ni-Cu alloys
(2) Tungsten Content: Typically 90%–97%
(3) Density: Approximately 16.5–18.8 g/cm³

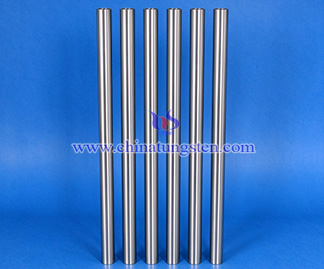

(4) Product Forms: Tungsten alloy rods, rings, sleeves, and customized structures
(5) Dimensions: Customizable
(6) Connection Features: Center holes, threads, locating shoulders, and other assembly features can be customized
With nearly 30 years of experience in tungsten alloy manufacturing, CTIA GROUP (CTIA) provides customized tungsten alloy counterweight solutions, integrating material selection, structural design, and precision machining to meet specific weight, space, and assembly requirements for oil drilling equipment and downhole tools.
