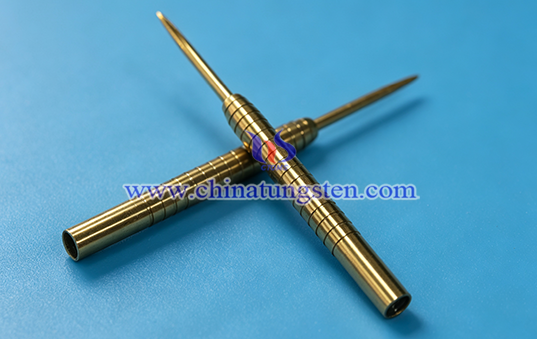

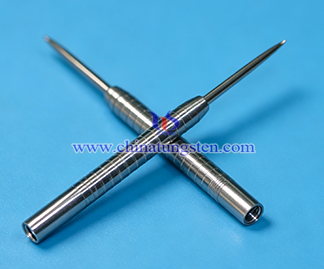

Tungsten Alloy Dart Barrel
1. What's Tungsten Alloy Dart Barrel?
Tungsten alloy dart barrel serves as the core body of a dart, combining weight adjustment, gripping, and center-of-gravity control. CTIA's tungsten alloy dart barrel uses tungsten powder as the base material, with nickel, iron, copper, and other elements as binder phases, and is produced through powder metallurgy. Barrel shape, weight distribution, and grip pattern can be designed to suit different throwing styles.
2. Features of CTIA's Tungsten Alloy Dart Barrel
(1) High Density, Compact Barrel: Density is generally 13.9–18.5 g/cm³, allowing a smaller barrel size at the same weight and helping reduce barrel cross-sectional area and flight resistance.
(2) Adjustable Weight Distribution: Front-loaded, center-balanced, or rear-loaded structures can be designed according to throwing habits to adjust the dart's center-of-gravity position.
(3) Better Tight Grouping: Slim barrels reduce the space occupied by adjacent darts and minimize interference between them, making them suitable for competitive throwing that requires high grouping density.
(4) Stable Grip Patterns: Barrels can be machined with anti-slip structures such as Knurling, Rings, and longitudinal grooves, combined with precision grinding, polishing, or nickel plating, to suit different gripping preferences.
(5) Good Strength and Dimensional Stability: Good resistance to impact and dimensional stability make the barrel suitable for long-term throwing and repeated assembly.
3. Types of CTIA's Tungsten Alloy Dart Barrel
(1) By Tungsten Content: 70W, 75W, 80W, 85W, 90W, 95W, and 97W series.
(2) By Shape: Straight, torpedo, barrel, teardrop, tapered, and irregular structures.
(3) By Center of Gravity: Front-loaded, center-balanced, and rear-loaded designs.
(4) By Grip Pattern: Knurled, ring-grooved, longitudinal-grooved, and composite patterns.
4. Applications of CTIA's Tungsten Alloy Dart Barrel
(1) Professional Competitive Darts: Used in professional tournaments and high-level competitive darts, with compact barrel dimensions, controlled weight, and center-of-gravity design to meet competitive throwing requirements.
(2) Training Darts: Used for daily and club training, with different weights and grip patterns available according to players' gripping methods and throwing habits.
5. Specifications of CTIA's Tungsten Alloy Dart Barrel
(1) Material: W-Ni-Fe, W-Ni-Cu
(2) Tungsten Content: 70%–97% W
(3) Density: 13.9–18.5 g/cm³
(4) Common Weights: 16 g, 18 g, 20 g, 22 g, 24 g, 26 g, 28 g, 30 g
(5) Dimensions: Diameter, length, and tolerances customizable
(6) Thread Specifications: 2BA, 4 mm, and others
(7) Surface Treatment: Precision grinding, polishing, titanium gold plating, and others
CTIA GROUP (CTIA) has nearly 30 years of experience in tungsten alloy manufacturing, with mature capabilities in powder metallurgy and precision machining. CTIA provides customized dart barrel solutions covering barrel profile, weight distribution, thread specifications, and grip pattern design, with precise control of dimensions, weight, and geometrical tolerances to meet specific design requirements.
