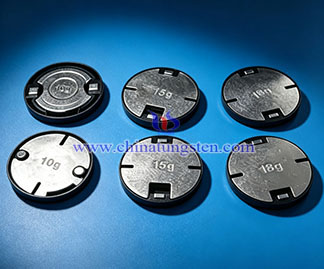

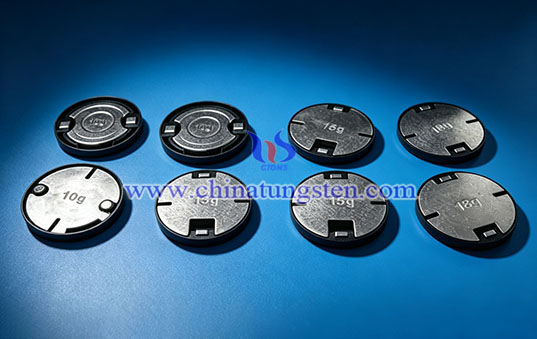

Tungsten Alloy Gaming Mouse Counterweight

1. What's Tungsten Alloy Gaming Mouse Counterweight?
Tungsten alloy gaming mouse counterweight is adjustable weight installed in counterweight compartment, slot, or designated mounting position inside a gaming mouse to change its total weight, center-of-gravity position, and movement inertia. CTIA's tungsten alloy gaming mouse counterweight uses tungsten heavy alloy’s high density and compact size to concentrate mass within limited internal space, supporting weight distribution and balance adjustment for different mouse configurations.

2. Features of CTIA's Tungsten Alloy Gaming Mouse Counterweight
(1) High Density and Compact Size: Tungsten alloy typically has a density of 16.5–18.8 g/cm³, approximately twice the density of steel, allowing the same counterweight mass to occupy less space and making it suitable for lightweight gaming mice and compact counterweight compartments.
(2) Concentrated Mass and Adjustable Center of Gravity: Counterweight mass, mounting position, and mass distribution can be adjusted to change the front-to-rear and left-to-right center-of-gravity position, influencing movement inertia and handling characteristics.
(3) Flexible Weight Options: Counterweights can be produced in weight specifications such as 10 g, 15 g, and 18 g, while multiple counterweight modules can be combined to adjust total mouse weight.
(4) High Strength and Wear Resistance: Tungsten alloy typically has a tensile strength of 700–1000 MPa and hardness of HRC 25–35, allowing the counterweight to withstand mechanical loads from frequent mouse movement, lifting, dropping, and repeated installation and removal.
(5) Non-Toxic and Material Stability: Tungsten alloy is non-toxic and non-radioactive and offers good environmental stability for long-term installation inside gaming mice.

3. Applications of CTIA's Tungsten Alloy Gaming Mouse Counterweight
(1) Adjustable-Weight Gaming Mice: Installed in bottom counterweight compartments or slots to adjust total mouse weight and center-of-gravity position by adding or removing counterweight modules.
(2) Esports Gaming Mice: Installed inside high-performance gaming mice to adjust mass distribution and movement inertia according to handling requirements.
(3) Wireless Gaming Mice: Installed near the battery compartment or in available internal space to add mass and adjust the center-of-gravity position without requiring a large installation volume.
(4) Gaming Mouse Modification: Used to replace or supplement existing counterweights, allowing counterweight mass, position, and distribution to be adjusted according to individual mouse configurations.

4. Specifications of CTIA's Tungsten Alloy Gaming Mouse Counterweight
(1) Material: W-Ni-Fe, W-Ni-Cu
(2) Tungsten Content: 90%–97%
(3) Density: 16.5–18.8 g/cm³
(4) Shapes: Discs, screws, and other customized forms
(5) Dimensions: Customizable
(6) Surface Condition: Ground or polished, customizable

With nearly 30 years of experience in tungsten alloy manufacturing, CTIA GROUP (CTIA) has established capabilities in powder metallurgy and precision machining. CTIA provides customized tungsten alloy gaming mouse counterweights based on mouse structure, installation space, and required weight, with tungsten content, material system, shape, dimensions, and individual weight configured for specific mouse designs.
