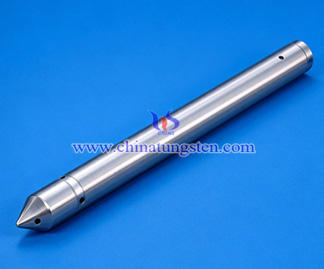

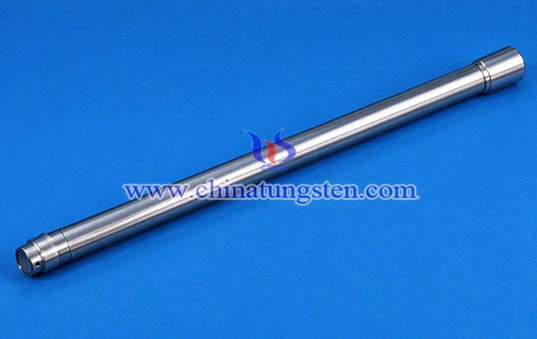

Tungsten Alloy Logging Tool Counterweight

1. What's Tungsten Alloy Logging Tool Counterweight?
Tungsten alloy logging tool counterweight is balancing weight installed inside logging tools for their associated assemblies to add localized mass, adjust the center of gravity, and optimize mass distribution. CTIA's tungsten alloy logging tool counterweight offers high density and compact dimensions, providing the required mass within limited instrument space for oil well logging, formation evaluation, and other downhole measurement applications.

2. Features of CTIA's Tungsten Alloy Logging Tool Counterweight
(1) High Density, Space Efficiency: Featuring a typical density of 16.5–18.8 g/cm³, tungsten alloy delivers substantial counterweight mass in a compact volume, making it suitable for logging instruments with limited installation space.
(2) Flexible Weight Adjustment: Allowing counterweight mass and installation position to be adjusted according to the instrument's internal structure and component layout, this design helps optimize weight distribution and center of gravity.
(3) High Strength, Downhole Durability: Withstanding vibration, impact, and mechanical loads encountered downhole, tungsten alloy offers high strength and toughness suited to different logging instrument requirements, with grades selected according to operating conditions.
(4) Dimensional Stability, Easy Assembly: Being relatively less affected by temperature changes, tungsten alloy helps maintain the counterweight's dimensions and meet the assembly requirements of logging instruments.
(5) Versatile Structures, Convenient Installation: Accommodating different installation requirements, tungsten alloy counterweights can be machined into cylinders, rings, sleeves, blocks, and customized structures with center holes, shoulders, threaded holes, and locating grooves.
(6) Material Options: Offering different magnetic properties, W-Ni-Fe and W-Ni-Cu tungsten alloys can be selected according to the magnetic requirements and operating conditions of logging instruments.

3. Applications of CTIA's Tungsten Alloy Logging Tool Counterweight
(1) Wireline Logging Instruments: Installed in measurement instruments deployed into wells by logging cables to meet the mass distribution and assembly requirements of internal components.
(2) Logging While Drilling (LWD) Systems: Integrated into counterweight assemblies for logging-while-drilling instruments to accommodate vibration, impact, and space constraints during drilling operations.
(3) Formation Evaluation Instruments: Incorporated into equipment that measures logging parameters such as resistivity, density, and porosity to meet internal layout and counterweight requirements.
(4) Downhole Temperature and Pressure Measurement Instruments: Integrated into relevant measurement assemblies to adjust localized mass distribution and center of gravity according to equipment structure.
(5) Geological Exploration Logging Equipment: Installed in downhole measurement instruments used in geological boreholes to accommodate different equipment requirements for installation space, counterweight mass, and connection structures.

4. Specifications of CTIA's Tungsten Alloy Logging Tool Counterweight
(1) Materials: W-Ni-Fe and W-Ni-Cu alloys
(2) Tungsten Content: 90%–97%
(3) Density: 16.5–18.8 g/cm³
(4) Forms: Tungsten alloy cylinders, rings, sleeves, blocks, and custom-shaped structures
(5) Dimensions: Diameter, length, wall thickness, and other dimensions are customizable
(6) Connection Features: Center holes, threaded holes, locating grooves, and other assembly features are customizable

CTIA GROUP (CTIA) draws on nearly 30 years of experience in tungsten alloy manufacturing to provide customized tungsten alloy counterweight solutions for logging instruments, combining material selection, structural design, and precision machining to suit different instrument designs, weight specifications, and installation requirements.
