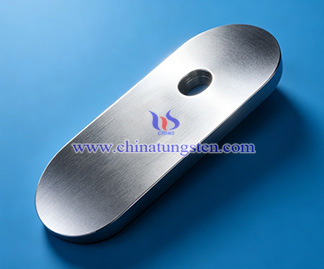

Tungsten Alloy Sailboat Counterweight
1. What's Tungsten Alloy Sailboat Counterweight?
Tungsten alloy sailboat counterweight is ballast component designed for sailboat hulls, ballast keels, and attitude control systems. It helps lower the vessel's center of gravity, generate a righting moment, and counteract sail-induced heeling. CTIA's tungsten alloy sailboat counterweight concentrates mass at the streamlined keel tip or in the bilge, with precise weight control and customized shapes to meet the balance requirements of racing and recreational sailboats.
2. Features of CTIA's Tungsten Alloy Sailboat Counterweight
(1) Concentrated Mass, Improved Righting Moment: High mass can be concentrated in the keel bulb or at the lowest point of the bilge, lowering the vessel's overall center of gravity and improving its righting moment and resistance to wind-induced heeling.
(2) High Density, Reduced Wetted Cross-Section: Density reaches 16.5–18.8 g/cm³, reducing volume by approximately 30%–40% compared with traditional lead ballast (approximately 11.34 g/cm³). This allows the streamlined keel housing and its wetted cross-section to be significantly reduced at the same ballast mass, helping lower hydrodynamic drag.
(3) Seawater and Salt-Spray Corrosion Resistance: Good resistance to oxidation and corrosion in seawater, high-salinity spray, and humid ballast compartments helps prevent rust and surface peeling during prolonged immersion, maintaining stable ballast mass and balance.
(4) High Toughness, Resistance to Wave Impact: High tensile strength and impact toughness help the counterweight withstand stresses from rough seas, severe hull movement, and impacts inside the lower hull without easily deforming or fracturing, helping maintain the structural safety of the ballast assembly.
(5) High Dimensional Accuracy, Close Fit with Keel Cavities: Precision turning, milling, grinding, and drilling control external dimensions and bolt-hole positions, ensuring a close fit with keel structures and designated ballast recesses.
(6) Flexible Shapes, Adaptable to Hull Spaces: Available as blocks, plates, cylinders, and custom three-dimensional shapes to fit keel bulbs, ballast compartments, and other internal hull spaces.
(7) Lead-Free, Environmentally Friendly: Tungsten alloy replaces lead ballast, avoiding lead-related environmental contamination and meeting marine environmental requirements and applicable international sailing competition rules.
3. Types of CTIA's Tungsten Alloy Sailboat Counterweight
(1) Keel and Bulb Ballast Counterweights: Installed inside the keel or underwater keel bulb, concentrating mass at the vessel's lowest point to generate the primary righting moment and counteract sail-induced heeling.
(2) Bilge and Main-Structure Counterweights: Installed in the bottom hull framework, double bottom, or designated bilge cavities. Longitudinal and transverse mass distribution is tailored to the hull layout to adjust the vessel's initial trim and center-of-gravity position.
(3) Ballast Tank and Hydrofoil Control Counterweights: Used in dedicated ballast tanks and moving control mechanisms such as hydrofoils and rudder blades. Customized dimensions fit specific compartment volumes and mechanical slots, enabling precise vessel attitude control under varying wind, wave, and sailing conditions.
4. Applications of CTIA's Tungsten Alloy Sailboat Counterweight
(1) Competitive Sailing and Racing Sailboats: Used in the keels and underwater attitude control systems of single-handed, double-handed, and multi-person racing sailboats, providing high-density ballast within limited space to improve righting moment and sailing performance.
(2) Offshore Cruising and Recreational Yachts: Installed in bottom hull structures and ballast compartments of cruising sailboats, luxury yachts, and ocean-going vessels to optimize mass distribution, improve overall balance and stability, and enhance comfort in challenging sea conditions.
(3) Small Boats and Lightweight Water Sports Equipment: Used in space-limited areas of small sailboats, open boats, and other lightweight water sports equipment to fine-tune the center of gravity without reducing available operating space.
5. Specifications of CTIA's Tungsten Alloy Sailboat Counterweight
(1) Material: W-Ni-Fe, W-Ni-Cu
(2) Tungsten Content: 90%–97%
(3) Density: 16.5–18.8 g/cm³
(4) Shape: Tungsten alloy plates, blocks, strips, rods, and customized parts
(5) Surface Condition: Ground or polished; customizable
(6) Dimensions and Weight: Customizable
CTIA GROUP (CTIA) has nearly 30 years of experience in tungsten alloy manufacturing, with established capabilities in powder metallurgy and precision machining. CTIA designs customized tungsten alloy sailboat counterweights to fit keel, bilge, and ballast-compartment layouts, tailoring weight, dimensions, and structural forms to the needs of racing sailboats, offshore cruisers, and other boatbuilding applications.
