What Are Applications of Tungsten Alloy Counterweight?

Tungsten alloy counterweight is used in aerospace, automotive manufacturing, precision machinery, industrial robotics, medical equipment, and sporting goods. CTIA provides customized tungsten alloy counterweight solutions for these applications, helping adjust center of gravity, balance rotating components, and optimize mass distribution according to equipment structure and operating requirements.

What Are Main Applications of CTIA's Tungsten Alloy Counterweights?
CTIA's tungsten alloy counterweights serve a variety of applications, including center-of-gravity adjustment in aerospace equipment, balance correction in rotating machinery, and mass distribution in precision instruments. Specific uses depend on the equipment's structure and operating requirements. The following outlines their roles in aerospace, transportation, industrial automation, medical equipment, consumer devices, oil drilling, and sporting goods.

1. Aerospace: Center-of-Gravity Adjustment and Attitude Control
Aircraft control surfaces, helicopter rotors, satellites, Unmanned Aerial Vehicles (UAVs), and rockets require precise mass distribution. Tungsten alloy provides substantial counterweight mass within limited space, helping adjust component center of gravity. CTIA offers customized tungsten alloy block, rod, and irregularly shaped tungsten alloy counterweights to suit different equipment structures and mounting requirements.

2. Transportation: Mass Distribution and Operational Balance
Rotating components such as automotive crankshafts and flywheels require counterweights to correct mass distribution, while racing vehicles and ships may use counterweights to adjust overall center of gravity. Tungsten alloy's high density and compact volume make it suitable for locations with limited installation space. CTIA customizes tungsten alloy counterweights according to target mass, rotational speed, mounting position, and structural dimensions to meet rotational balancing and overall mass-distribution requirements.

3. Industrial Automation and Precision Equipment: Balancing and Center-of-Gravity Control
Equipment such as CNC machine tool spindles, robot joints, centrifuge rotors, steam turbines, and optical instruments may require counterweights to adjust center of gravity or correct static and dynamic balance. Tungsten alloy allows mass to be concentrated within compact structures. CTIA machines counterweight blocks, rings, rods, and irregularly shaped components, with dimensional tolerances and mass deviations controlled according to equipment requirements.

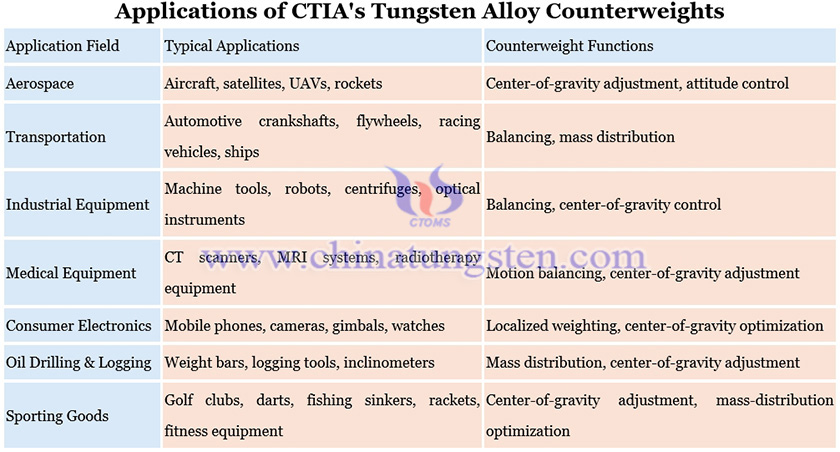

The main applications of CTIA's tungsten alloy counterweights are shown in the following picture:

4. Medical Equipment: Compact Design and Precision Motion Balancing
Moving components in Computed Tomography (CT) scanners, Magnetic Resonance Imaging (MRI) systems, and radiotherapy equipment may require counterweights for center-of-gravity adjustment and motion balancing. Tungsten alloy's high density allows the required mass to fit into a compact space. CTIA provides customized tungsten alloy counterweights based on equipment layout, target mass, and mounting requirements. Radiation shielding applications require separate assessment of material specifications and shielding design.

5. Precision Electronics and Consumer Devices: Miniature Counterweights and Center-of-Gravity Optimization
Mobile phones, cameras, gimbals, and watches require precise mass distribution within limited internal space. Tungsten alloy's high density allows compact counterweights to provide the required mass without taking up excessive space. CTIA offers customized miniature block, rod, and irregularly shaped counterweights to suit product dimensions, target mass, and mounting requirements.

6. Oil Drilling and Logging Equipment: High-Density Weighting and Structural Adaptation
Oil drilling weight bars, logging tools, and inclinometers use tungsten alloy counterweights to meet specific weighting and balancing requirements. Tungsten alloy's high density provides the required mass within limited space. CTIA customizes tungsten alloy counterweight structures to suit equipment dimensions, target mass, connection methods, and downhole operating conditions.

7. Sporting Goods: Center-of-Gravity Adjustment and Performance Optimization
Golf clubs, darts, fishing tackle (fishing sinkers), tennis rackets, badminton rackets, and fitness equipment use tungsten alloy counterweights to adjust center of gravity, mass distribution, and handling characteristics. Tungsten alloy's high density allows additional mass to be concentrated in limited spaces. CTIA customizes tungsten alloy counterweights in different masses, dimensions, and shapes to suit product designs, such as adjusting golf club head mass, dart barrel balance, fishing sinker weight, or overall weight distribution in fitness equipment.

How to Select CTIA's Tungsten Alloy Counterweights for Different Applications?
Tungsten alloy counterweight selection depends on the application, required mass, available space, component design, and operating conditions. Magnetic properties, dimensional tolerances, and mounting requirements also influence material grade and machining methods. CTIA customizes counterweight blocks, rods, balls, plates, rings, and complex shapes for different applications.
High-speed rotating equipment and precision systems require careful consideration of operating speed, vibration, mass distribution, and balancing accuracy. These factors also determine inspection methods and acceptance criteria. CTIA tailors component design, machining tolerances, and quality inspection to specific technical requirements, ensuring compatibility with equipment structures and operating conditions.

CTIA GROUP (CTIA) has nearly 30 years of experience in tungsten alloy manufacturing, offering counterweight design, precision machining, and custom solutions for aerospace, automotive, precision machinery, industrial automation, medical equipment, and sporting goods. The material options include tungsten-nickel-iron (W-Ni-Fe) and tungsten-nickel-copper (W-Ni-Cu). CTIA's tungsten alloy counterweights are available in block, plate, rod, ball, ring, and customized shapes. Material selection and component design are tailored to the required weight, available space, mounting method, and dimensional tolerances. CTIA's tungsten alloy counterweight solutions help equipment manufacturers achieve precise mass distribution, balance rotating components, and adjust center of gravity.
