Tungsten Alloy Counterweight in Marine Engineering

Tungsten alloy counterweight in marine engineering is high-density balancing weight used for mass adjustment and center-of-gravity control in marine and underwater equipment, including surface vessels, submersibles, underwater robots, and various subsea operating equipment. CTIA's tungsten alloy counterweight features high density, relatively high strength, good corrosion resistance, and flexible structural configurations, meeting the requirements of marine and underwater equipment for compact counterweighting, stable operation, and reliable installation.

1. Features of CTIA's Tungsten Alloy Counterweight in Marine Engineering
CTIA's tungsten alloy counterweight is suitable for marine engineering because its density, strength, corrosion resistance, magnetic properties, and machining flexibility can meet different counterweighting requirements of marine and underwater equipment. The key material and structural features are as follows:
(1) High Density for Compact-Space Counterweighting: Density is approximately 16.5–18.8 g/cm³, allowing greater mass to be configured within a relatively small volume and making it suitable for installation inside submersibles, underwater robots, and marine vessels.
(2) High Strength for Impact and Vibration Resistance: Tensile strength can reach 700–1050 MPa, allowing the counterweight to withstand impact, vibration, and operational loads and making it suitable for fixed counterweights, attitude adjustment, and moving components.
(3) Good Corrosion Resistance for Seawater Environments: Tungsten alloy provides good corrosion resistance, while surface treatments such as nickel plating and protective coatings can further improve durability in humid, salt-spray, and seawater environments.
(4) Low Magnetic Response for Magnetically Sensitive Equipment: W-Ni-Cu tungsten alloy has low magnetic response and is suitable for underwater measurement, navigation, and detection equipment with magnetic-environment requirements.
(5) Flexible Structures for Different Installation Methods: Tungsten alloy can be machined into counterweight blocks, rods, rings, plates, and irregular components, with holes, grooves, threads, and locating features available for different installation configurations.

2. Applications of CTIA's Tungsten Alloy Counterweight in Marine Engineering
(1) Submersibles and Underwater Robots: Used for internal counterweighting, trim adjustment, and attitude control in Autonomous Underwater Vehicles (AUVs), Remotely Operated Vehicles (ROVs), and manned submersibles.
(2) Vessels and Yachts: Used for hull counterweights, keel counterweights, and stabilizing structures in sailboats, yachts, and small workboats.
(3) Marine Engineering Equipment: Used for counterweighting underwater work platforms, subsea tools, and underwater actuators in subsea construction, inspection, and maintenance equipment.
(4) Underwater Detection and Measurement Equipment: Used for counterweighting and attitude adjustment in sonar systems, magnetic measurement instruments, oceanographic observation equipment, and underwater inspection equipment.
(5) Shipborne Stabilization Systems: Used as counterweights for moving components in radar systems, electro-optical tracking equipment, antennas, and stabilization platforms for shipborne communication, navigation, and monitoring equipment.
(6) Underwater Operating Equipment: Used for counterweighting underwater manipulators, sampling equipment, inspection tools, and end-effectors of underwater robots in subsea sampling, gripping, and precision operations.

3. Specifications of CTIA's Tungsten Alloy Counterweight in Marine Engineering
(1) Material: W-Ni-Fe, W-Ni-Cu
(2) Tungsten Content: 90%–97%
(3) Density: 16.5–18.8 g/cm³

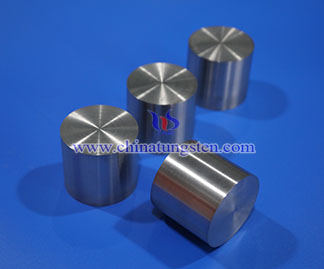

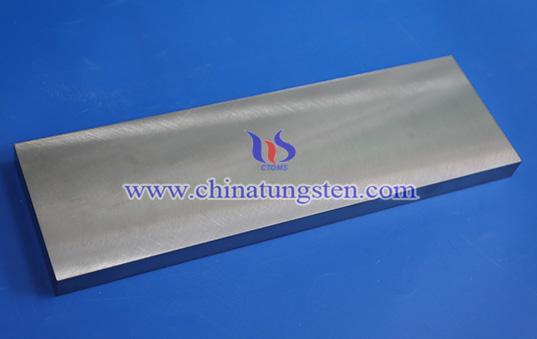

(4) Structural Forms: Counterweight blocks, plates, rods, rings, and irregular components, with perforated, slotted, threaded, and combined structures available
(5) Dimensions: Customizable
(6) Surface Condition: Ground or polished, with passivation, nickel plating or corrosion-resistant coating

CTIA GROUP (CTIA) has nearly 30 years of experience in tungsten alloy manufacturing, with capabilities covering powder metallurgy and precision machining. CTIA provides material selection, structural design, and customization services for tungsten alloy counterweights based on space, mass, environmental, and magnetic-property requirements of deep-submergence vehicles, AUVs, ROVs, vessels, and underwater equipment, supporting sample production and batch supply of tungsten alloy blocks, rods, rings, plates, and complex irregular components.
