Tungsten Alloy CT Equipment Counterweight
1. What's Tungsten Alloy CT Equipment Counterweight?
Tungsten alloy CT equipment counterweight is high-density tungsten alloy balance weight used to balance rotating assemblies in CT equipment. By adding precisely controlled mass at selected positions, it compensates for mass differences among components such as X-ray tubes and detectors, while optimizing the center of gravity and mass distribution to maintain rotational balance and stability. CTIA's tungsten alloy CT equipment counterweight features high density, dimensional stability, and high machining precision, making it suitable for compact installation spaces inside CT rotating gantries.
2. Features of CTIA's Tungsten Alloy CT Equipment Counterweight
(1) High Density and Compact Size: Density is 16.5–18.8 g/cm³, concentrating substantial mass in a compact form for installation in limited spaces inside CT rotating gantries.
(2) Adjustable Mass Distribution: Mass, dimensions, and installation positions can be configured to fine-tune the center of gravity and mass distribution of rotating components, reducing rotational imbalance.
(3) High Strength and Resistance to Rotational Loads: W-Ni-Fe tungsten alloy offers high strength and hardness, with tensile strength up to 700–1200 MPa, supporting reliable operation under centrifugal loads and continuous vibration.

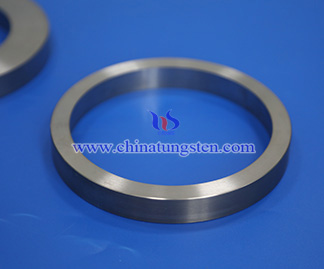

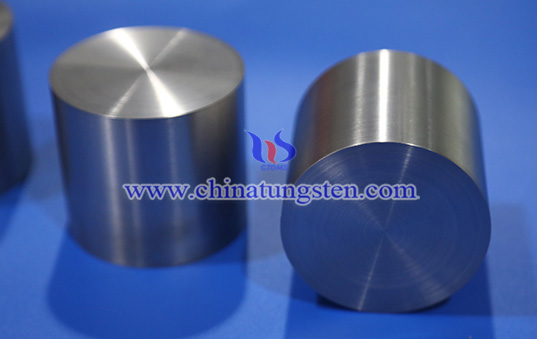

(4) Flexible Structural Forms: Available as blocks, plates, rings, rods, and irregular structures, with holes, slots, threads, and locating surfaces for precise assembly with CT gantry structures.
(5) Selectable Magnetic Properties: W-Ni-Fe offers good mechanical properties, while non-magnetic W-Ni-Cu is suitable for CT equipment with magnetic requirements.
3. Applications of CTIA's Tungsten Alloy CT Equipment Counterweight
(1) Medical CT Equipment: Used for rotating gantry mass balancing, compensating for mass deviations caused by X-ray tubes, detectors, and other components, and optimizing the center of gravity and mass distribution of rotating assemblies.
(2) Industrial CT Equipment: Used in large rotating gantries and inspection platforms, with counterweight mass configured according to the mass distribution of rotating components and load-bearing structures for continuous rotation and high-load operating conditions.
(3) PET-CT Hybrid Equipment: Used in CT rotating gantries of PET-CT systems to accommodate counterweights within integrated structures and limited installation spaces while compensating for mass deviations in rotating assemblies.
4. Specifications of CTIA's Tungsten Alloy CT Equipment Counterweight
(1) Material: W-Ni-Fe, W-Ni-Cu
(2) Tungsten Content: 90%–97%
(3) Density: 16.5–18.8 g/cm³
(4) Dimensions: Customizable
(5) Structural Forms: Tungsten alloy blocks, plates, rings, rods, and irregular structures, with holes, slots, threads, and locating structures
(6) Surface Treatment: Grinding, polishing, and other specified treatments
With nearly 30 years of experience in tungsten alloy manufacturing, CTIA GROUP (CTIA) has established capabilities in powder metallurgy and precision machining. CTIA provides tungsten alloy counterweight solutions for CT equipment, covering material selection, structural design, precision machining, and quality inspection to meet customer requirements.
